“Ali Baba” is the 7th largest yacht built by the Italian yard ISA Yachts,
part of the Palumbo Superyachts Group, and features exterior lines
from Studio Vallicelli Design and interior by Francesco Paszkowski.
She has 6 cabins, two of which are separate Masters ideally suited for
shared ownership or charter, and accommodates up to 12 Guests,
serviced by up to 9 Crew.
She is powered by 2 CAT3512 engines, together with Caterpillar 6.6
Generators, has a top speed of 17 knots, cruising at 12.5 knots, and a
transatlantic range of 4500 nautical miles.
Equipped with Naiad zero-speed stabilisers, an extensive 2022/2023
refit plus modifications in 2024, and a recent 10-year class survey, Ali
Baba is ready for a new owner without the headaches of the initial
extended yard periods.
Additionally, Ali Baba has been designed to give the feeling of space
in her accommodation, whilst staying under the 500GT threshold, so
giving greater flexibility on usage and reducing the overall cost of
ownership
Disclaimer
SPECIFICATIONS:
TYPE: FULL DISPLACEMENT MOTOR YACHT
LOA: 49.95M (163’10’’)
LWL: 43.13M (141’50’’)
MAX BEAM: 8.90M (29’19’’)
MAX DRAFT: 2.6M (8’5’’)
BUILDER: ISA YACHTS
BUILT YEAR: 2012
REFIT: 2022/23
EXTERIOR DESIGN/NAVAL ARCHITECT: ANDREA VALLICELLI
INTERIOR DESIGN: FRANCESCO PASZKOWSKI
HULL MATERIAL: STEEL
SUPERSTRUCTURE MATERIAL: ALUMINIUM
DECKS MATERIAL: TEAK
HULL COLOUR: WHITE
ENGINES: 2 X CATERPILLAR 3512C 4425HP
GROSS TONNAGE: 498
DISPLACEMENT: 149
FLAG: CAYMAN ISLANDS
CLASSIFICATION: RINA MCA LY2
ACCOMMODATION
GUESTS: 12
GUEST CABINS: 6
CABINS CONFIGURATION:
1 X MASTER CABIN WITH EN SUITE FACILITIES – MAIN DECK
1 X MASTER CABIN WITH EN SUITE FACILITIES HAMMAM – UPPER DECK
2 X DOUBLE CABINS 9/10
2 X TWIN CABINS 5
1 X CAPTAIN’S CABIN
4 X CREW CABINS
CAPACITIES
FRESH WATER 21,000 LITRES / 5,547 US GALLONS
FUEL 85,000 LITRES / 22,454 US GALLONS
GREY WATER 2 X 2,650 LITRES / 2 X 700 US GALLONS
BLACK WATER 5,100 LITRES / 1,347.2 US GALLONS
PERFORMANCE
MAX SPEED: 17 KNOTS
CRUISING SPEED: 12.5 KNOTS
ECONOMICAL SPEED: 11 KNOTS
RANGE: 4500 NM
REFIT 2022/2023
BRIDGE/DECKS:
DRY DOCK: COMPLETE ANTIFOULING CYCLE WITH CORROSION TREATMENT
VARIOUS PAINT TOUCH-UPS: REAR FLANGE, GANGWAY, MACHINE DOOR, AREA
RESCUE BOAT FORWARD, CREW ENTRANCE…
REPLACEMENT OF ALL EXTERIOR UPHOLSTERY + ALL THE COVERS
COMPLETE POLISH + CERAMIC HULL PROTECTION
REMOVAL OF THE JACUZZI ON THE SUNDECK (ALL PIPING/CONNECTIONS STILL
EXISTING)
NEW WINDOW ON THE UPPER DECK – MASTER CABIN
INSTALLATION OF A MANUAL CRANE ON THE SUNDECK IN ORDER TO RAISE THE SLIDE
INSTALLATION OF “SUNSHADES” ON ALL DECKS
INSTALLATION STARLINKANTENNA : 2 MARITIMES + ONE TERRESTRIAL
NEW CARBON SWIM-LADDER
MACHINE:
VIBRATION TEST BEFORE AND AFTER SHIPYARD PERIOD
REPLACEMENT OF GLAND PRESS, HYDROLUBLE RING, ENGINE’S SUPPORT AND
INVERTERS + PROPELLER SHAFT CHECK
PROPELLER BALANCE
NEW RUDDER SEALS
WELDING OF THE EXHAUST SILENCERS WITH REPLACEMENT OF THE PROTECTION
THERMAL + REPLACEMENT OF GASKETS
BLACK WATER TANK: SANDBLASTING + TREATMENTS
FRESH WATER TANK: TREATMENTS + TOTAL DISINFECTION OF THE ENTIRE CIRCUIT
REPLACEMENT OF FIRE SHUTTERS
MAINTENANCE OF ALL THE PUMPS ON THE BOAT
COMPLETE CHANGE OF THE REFRIGERATOR COMPRESSOR SYSTEM
FULL MAINTENANCE OF THE DESALINATOR WITH NEW MEMBRANE
REFIT 2022/2023
MAINTENANCE OF STABILIZERS
MAINTENANCE OF WINDLASSES + ELECTRIC MOTORS
CLEANING OF ALL FAN COILS AND PIPES
MAINTENANCE OF THE AIR TREATMENT UNIT AND EXTRACTOR
GENERAL HYDRAULIC MAINTENANCE WITH REPLACEMENT OF LOT OF HOSES
MAINTENANCE OF CRANES’S ELECTRIC MOTORS AND RUDDERS
ANNUAL MAINTENANCE OF THE ENGINES
ANNUAL MAINTENANCE OF THE INVERTERS
ANNUAL MAINTENANCE OF GENERATORS + REPLACEMENT OF TURBOS AND
INJECTORS + INJECTOR’S PUMP
REPLACEMENT OF THE BOW THRUSTER POD
INTERIOR:
NEW PLEXIGLASS STORAGE FOR ALL NEW DISHES
RAISING THE LIVING ROOM SOFA
NEW CARPET IN ALL CABINS
LOT OF “TOUCH UP” COSMETIC THROUGHOUT THE BOAT, TREATMENT OF STONE
WALLS, MARBLES, ETC…
NEW OVEN, HOTPLATES, GRILL, AND INSTALLATION OF 2 NEW DISHWASHER
NEW INTERIOR DECORATION: CUSHIONS + SHEETS + DECORATIVE OBJECTS +
LEATHER ACCESSORIES…
TOYS:

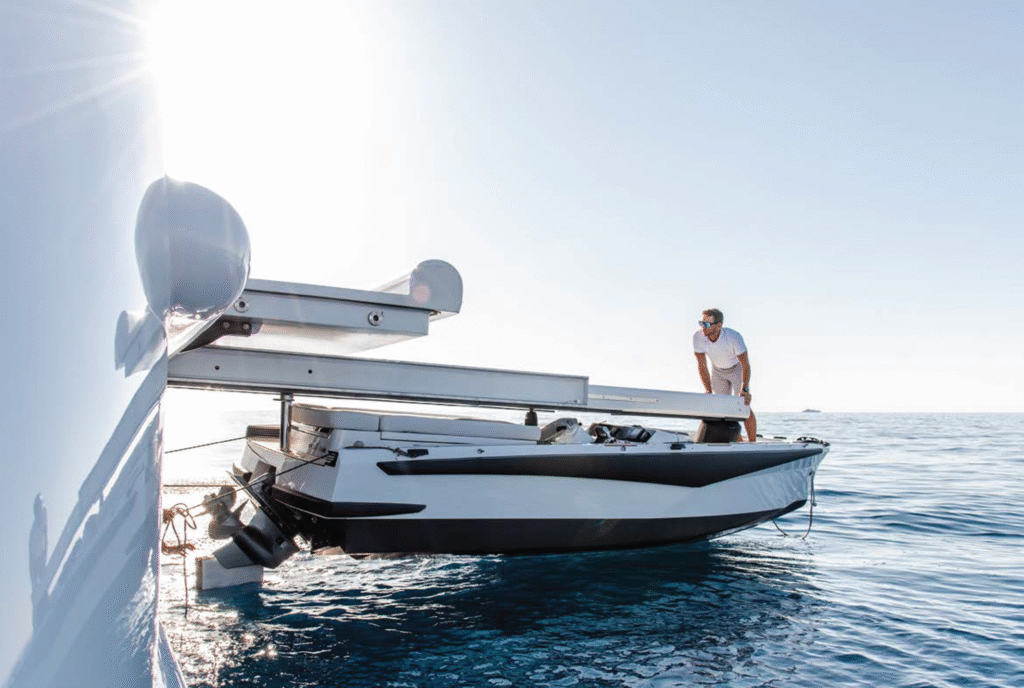

NEW TENDER LUXPLORER 560
REPLACEMENT OF THE RESCUE BOAT NOVURANIA 3.40M
2 NEW SEA BOB

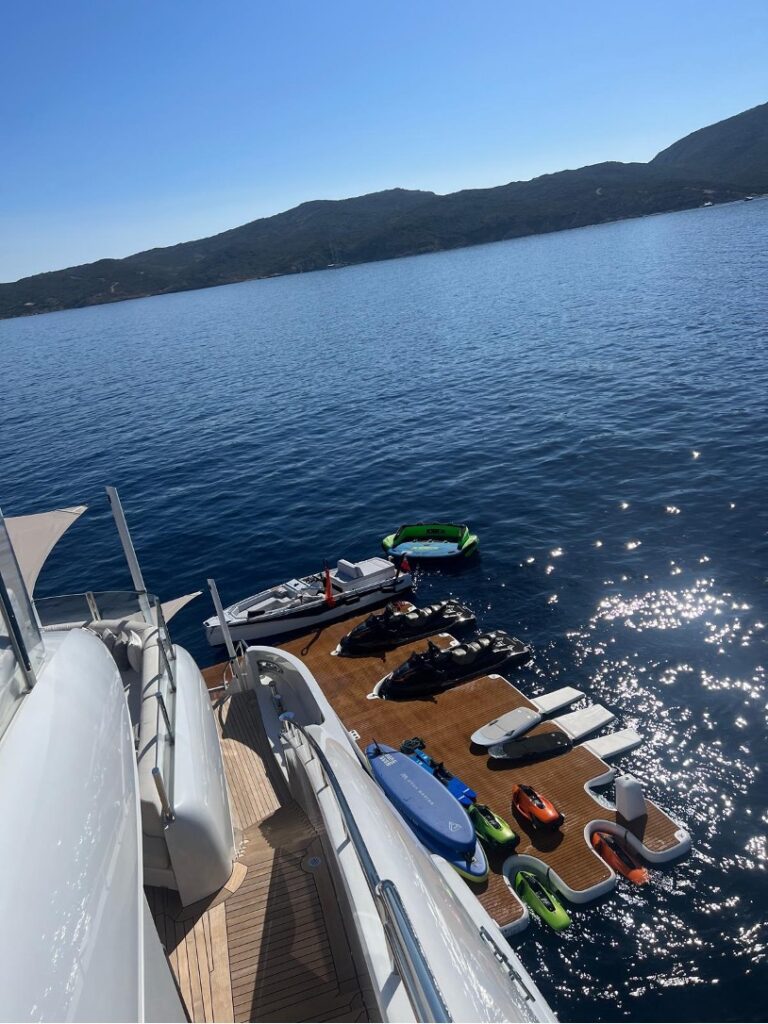

NEW INFLATABLE PLATFORM FOR JET SKI, SEABOB AND FLITBOARD
ANNUAL MAINTENANCE OF ALL SECURITY EQUIPMENT (FIRE CONTROL UNIT, FIRE
EXTINGUISHERS, LIFE JACKETS, LIFE SUITS, LIFE RAFT, HIFOG SYSTEM, DIVING
COMPRESSOR, RADIO VISIT, PHARMACY…)
REFIT 2021
FULL 10 YEARS CLASS SURVEY COMPLETED WITH RINA
ALL LIST OF MAINTENANCE/SERVICES REQUESTED BY RINA HAS BEEN DONE!
EXTERIOR REFIT
SUN DECK: REMOVAL OF TABLE AND BAR, NEW SPOTLIGHTS, SOUND SYSTEM,
INSTALLATION OF SWEDISH WALL GYM EQUIPMENT, TEAK DECK REFURBISHMENT
AND PAINT TOUCHES UP.
AFT MAIN DECK PROVIDE A FOLDABLE/SLIDING NEW TABLE FOR 10/12 PERSONS
COMPLETE NEW UPHOLSTERY ON MAIN DECK, SUN DECK, UPPER DECK
INTERIOR REFIT
UPPER SALOON:CONVERT UPPER SALOONIN MASTER BEDROOMAND BATHROOM,
MOVING CAPTAIN CABIN TO THE 5TH GUEST CABIN IN LOWER DECK, ADDING
DECORATIVE DOOR BETWEEN LOW CORRIDOR AND GUEST AREA TV LIFT, SOUND
SYSTEM;LIGHTS AND A/V UPGRADE IN NEW MASTER CABIN.
INSTALLATION OF NEW COMPLETE BATHROOM, INCLUDING WC, SHOWER WITH
SAME DESIGN AND MATERIAL THAN OTHERS CABINS.
INSTALLATION OF HAMMAM IN NEW MASTER CABIN WITH STONE FINISHINGMAIN
SALOON: NEW LAYOUT, INSTALLATION OF NEW TV, CROCKERY,
CABINET/FURNITURES, NEW CURTAINS, NEW SOFA, CHAIRS,
CUPBOARDS,CARPETS…
REBUILT COMPLETELY THE STEPS TO AVOID ANY « CRACKS » NOISE.
DOMINIC SYSTEM UPDATED
INTERIOR FURNITURES FOR BEDS AND TOWELS
NEW PLATES, GLASSES ….
COMPLETE SET OF INTERIOR FURNITURETO UPGRADE SERVICETABLE, INTERIOR
DESIGN
